Photograph the pattern and preserve evidence before scraping, sanding or adding another product.
Garage floor problem guide
Can a cracked or pitted garage floor be coated?
Many static defects can be prepared and repaired, but moving joints, displaced cracks, heaving and unsound concrete need different treatment. Decorative resin does not make structural movement disappear.
Classify each line and damaged area, remove unsound edges, use compatible repair materials for suitable static defects and preserve or refer movement conditions before coating.
Install or repair only after the retained substrate and compatible system have been verified.
Before → solution → after
See the problem, the corrective work and the finished floor.
The first frame shows what the homeowner sees now. The center frame shows the preparation or coating work. The final frame shows the finished decorative direction that becomes possible after the substrate is verified.

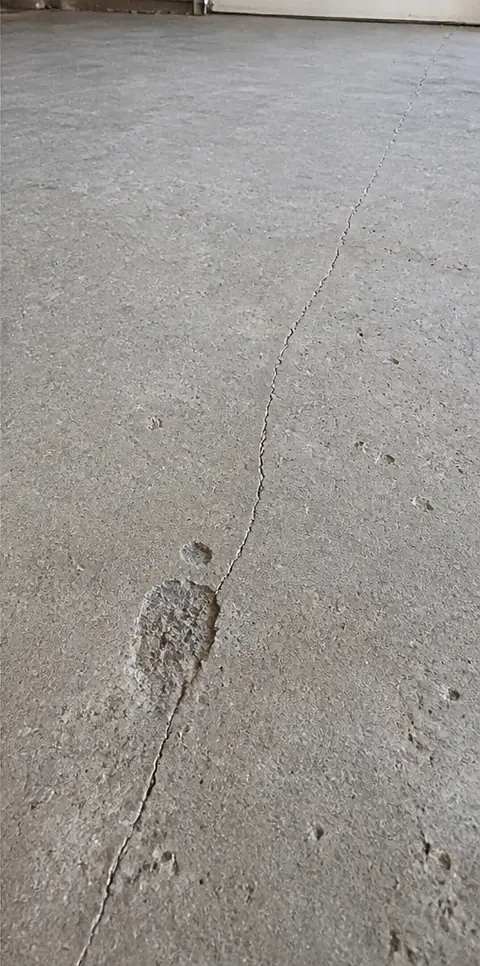

See the current cracks, pits or spalls condition clearly before loose material, residue or other evidence is disturbed.
Classify each line and damaged area, remove unsound edges, use compatible repair materials for suitable static defects and preserve or refer movement conditions before coating.
A clean finished floor is installed only after the substrate, repair boundary and compatible layer system are verified.
Educational before–solution–after sequence. Images explain the decision path and are not represented as one completed Texas Garage Floor Coating Installers project.
Immediate answer
What cracks, pits or spalls can mean.
Many static defects can be prepared and repaired, but moving joints, displaced cracks, heaving and unsound concrete need different treatment. Decorative resin does not make structural movement disappear.
Classify each line and damaged area, remove unsound edges, use compatible repair materials for suitable static defects and preserve or refer movement conditions before coating.
The inspection should identify whether the symptom is cosmetic, a loss of adhesion, weak concrete, active movement, a moisture condition or a cure problem. Those categories change both the repair boundary and whether coating should proceed.
Plausible causes
Six conditions to separate before choosing a fix.
Each card names a real inspection path and the evidence that makes it more or less likely.
Check 01
Drying-shrinkage crack
Classify the line as a static defect, designed joint or active movement before selecting a repair detail. Map where the condition begins and where it is most severe.
Check 02
Control or construction joint
Classify the line as a static defect, designed joint or active movement before selecting a repair detail. Compare the affected area with adjacent sound floor and retained layers.
Check 03
Impact and mechanical damage
Compare the mark with tire paths, parked loads and repeated wear before naming the damaged layer. Record when the pattern changes and what the garage was exposed to.
Check 04
Weak concrete or surface scaling
Test surface strength, profile and the material left beneath the defect—not appearance alone. Review preparation, product history and conditions during installation.
Check 05
Moisture and salt-related damage
Map damp edges, weather changes and recurring deposits, then compare the evidence with a documented slab test. Check the named manufacturer's limits for this exact layer.
Check 06
Continuing slab or soil movement
Map the exposure and cleaning history, then verify whether preparation can reach clean, sound concrete. Confirm the sound repair boundary before adding another coating.
Diagnosis route
Four steps from symptom to defined scope.
Map the pattern
Separate tire, random, edge, joint, broad and isolated zones.
Identify the layer
Determine what remains on the concrete and on the failed material.
Check the substrate
Review soundness, contamination, moisture evidence, profile and movement.
Test the boundary
Verify apparently sound areas and document the compatible repair or removal scope.
Finding → next evaluation
The same symptom can lead to different work.
| Finding | Evaluate | Avoid |
|---|---|---|
| Small isolated area | Adjacent adhesion and compatible patch materials | Assuming the visible edge is the whole boundary |
| Broad or repeated pattern | Substrate, moisture, contamination and every retained layer | Covering the pattern with a stronger clear coat |
| Damage at a joint | Expected movement and joint purpose | Rigidly hiding a line designed to move |
| Concrete leaves with coating | Extent of weak or unsound surface material | Using resin to disguise a weak substrate |
Related corrective services
Diagnosis connects to a real installation path.
Epoxy systems
Build, color and decorative versatility over properly prepared concrete.
Open service guide →Full-flake floors
Dense decorative chip coverage with selectable texture and topcoat.
Open service guide →Polyaspartic coatings
Fast-cure topcoat or full-system routes governed by exact product data.
Open service guide →Polyurea coatings
Product-specific fast-cure options without relying on a category label.
Open service guide →Metallic epoxy
Flowing pigments for a custom showpiece garage or finished flex room.
Open service guide →Quartz broadcast
A dense mineral aggregate field with controllable texture.
Open service guide →Cracks, Pits or Spalls FAQ
Six answers before repair or recoating.
Will flakes hide cracks?
Many static defects can be prepared and repaired, but moving joints, displaced cracks, heaving and unsound concrete need different treatment. Decorative resin does not make structural movement disappear. A photograph starts the conversation, but inspection and the installed layer history are needed before one cause is assigned.
Should control joints be filled?
Not automatically. Classify each line and damaged area, remove unsound edges, use compatible repair materials for suitable static defects and preserve or refer movement conditions before coating. The surrounding floor must be checked before a localized correction is assumed to be enough.
What is the difference between a crack and a joint?
Timing, temperature, moisture, contamination and layer compatibility can create similar symptoms. Record when the condition changes and what the floor has been exposed to.
Can pitted concrete be leveled?
A new topcoat cannot restore a weak or uncured layer below it. The failed interface and sound replacement boundary come first.
Will repairs show through metallic epoxy?
The extent depends on adhesion and soundness beyond the visible defect. A written scope should explain what is retained, removed and why.
When is an engineer needed?
Send one wide garage view, a close-up with scale, joints and thresholds, plus installation date, known products, cleaners, spills and weather or water history.
Slab-first estimate
Document the cracks, pits or spalls before covering it.
Send wide and close photographs, the floor history, garage use and ZIP code. The final scope should explain what is retained, removed, repaired or referred.
