Remove weak or foreign material and create the profile required by the named system.
How it works
One visible route from the garage you have to the floor you want.
The finished color is the result. The process makes removal, preparation, repairs, compatible layers and the hand-off visible before work begins.
Four controlled stages
Diagnose → design → install → hand off.
- Review photos, use and floor history.
- Inspect soundness, contamination, defects and moisture evidence.
- Name every product and its layer role.
- Control conditions and state full vehicle cure.
Garage floor coating system
Educational routeComplete compatible static repairs while keeping control and movement-joint decisions explicit.
Control mix, coverage and working time as flakes are distributed into the receptive resin layer.
Finish with a compatible topcoat, verified texture and product-specific return-to-service guidance.

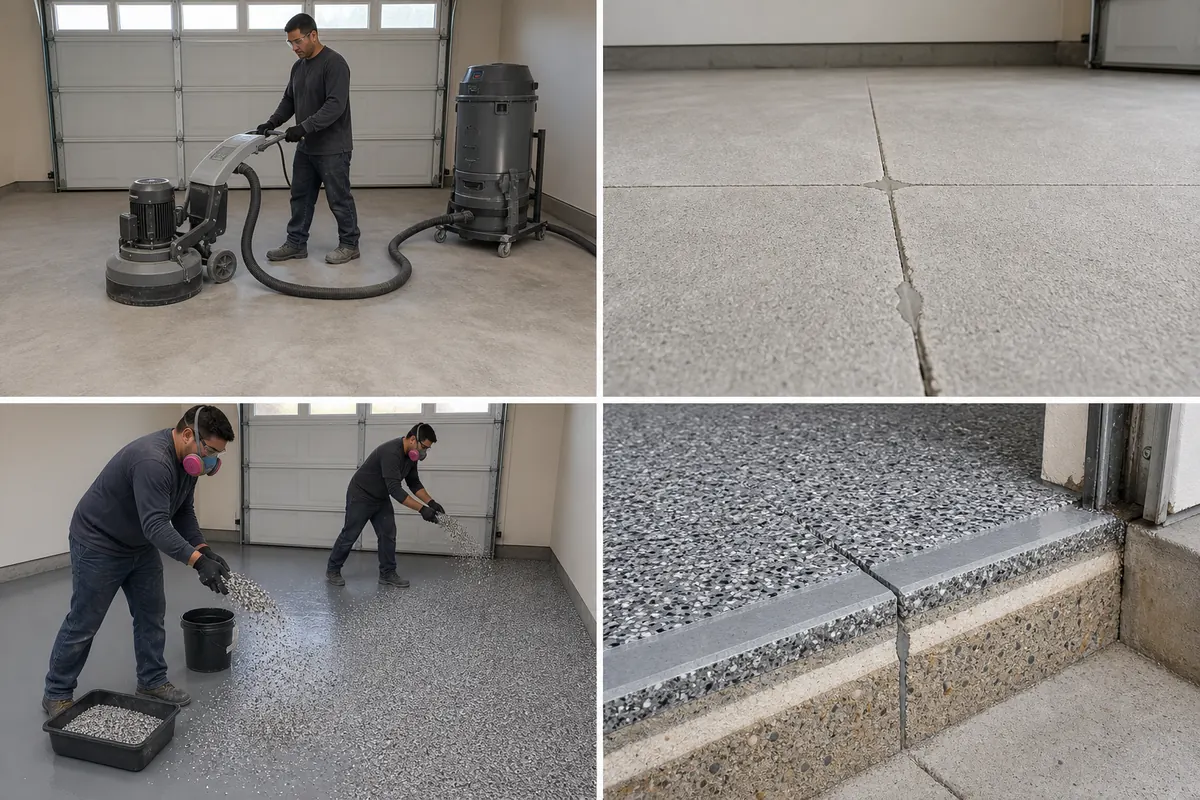

Generated educational visual. The actual slab, product data and written scope control every step.
Correct / incorrect
Why the hidden steps decide the visible result.
What goes wrong
New resin follows the surface it is given
Rolling over contamination, smooth sealer or a failing old layer can leave the entire assembly dependent on a weak interface. The lower image shows the type of peeling that may follow—not a diagnosis of every failure.
Controlled route
Profile sound concrete, then install compatible layers
Mechanical preparation with dust extraction is followed by the product-specific repair, binder, broadcast and topcoat sequence. Joint decisions remain visible instead of being hidden by decoration.
AI-generated educational comparison. It explains workflow logic and is not represented as a completed company project or a universal specification.
System cross-section
Every layer needs a purpose and compatible neighbor.
Compatible topcoatWear, color stability, chemical exposure, sheen and texture selected for actual garage use
Decorative broadcast or finishSpecified coverage and texture—never a substitute for preparation or repairs
Primer / binder / baseExact product chemistry, coverage, mix ratio and recoat window documented as one assembly
Prepared concrete profile + repairsSound, clean surface with defects classified and treated by compatible methods
Movement-joint detailDo not erase expected slab movement with a rigid decorative layer.
Existing concrete slabSoundness, moisture condition, past sealers/coatings and exposure evaluated first
Educational cross-section only. The selected manufacturer's data sheets and the condition of the actual slab control the final sequence, thickness, preparation and cure.
Process FAQ
Six questions before installation day.
Does every floor follow the same schedule?
No. Removal, repair, product chemistry, temperature and cure can change both installation and return-to-use.
Is grinding always used?
The selected manufacturer and substrate define acceptable preparation and target profile.
Can work begin from photos alone?
Photos support planning, but the retained substrate, defects and site conditions must be verified before installation.
What is checked at hand-off?
Appearance, texture, edges, cure status and the written cleaning, maintenance and vehicle-return guidance.
How are cracks handled?
They are classified as static defects, joints or movement symptoms before a repair detail is selected.
Why name every product?
Layer compatibility and limits cannot be checked from a generic label such as epoxy or polyurea.
Slab-first estimate
Ask for a process that can be checked in writing.
The local assessment should produce a clear preparation, repair, layer, cure and maintenance scope for the actual garage.
